Ehang Ghost



The Phone Controlled Quadcopter is managed by a Smart Phone App and has return to home and precision positioning functionality. It has been designed to be wind resistant and the Ehang Drone has a standard fifteen minutes flying time from a single charge.The camera version has a thirteen mega pixel on-board camera designed for taking quality Aerial Photography. The Quadcopter comes with a 433mHZ 80mw standard bluetooth communicator. See below all Features and Specifications:

Ehang Ghost, Ehang Ghost Drone, Ehang Ghost Quadcopter, QuadsForFun
Ehang Ghost, Ehang Ghost Drone, Ehang Ghost Quadcopter, QuadsForFun

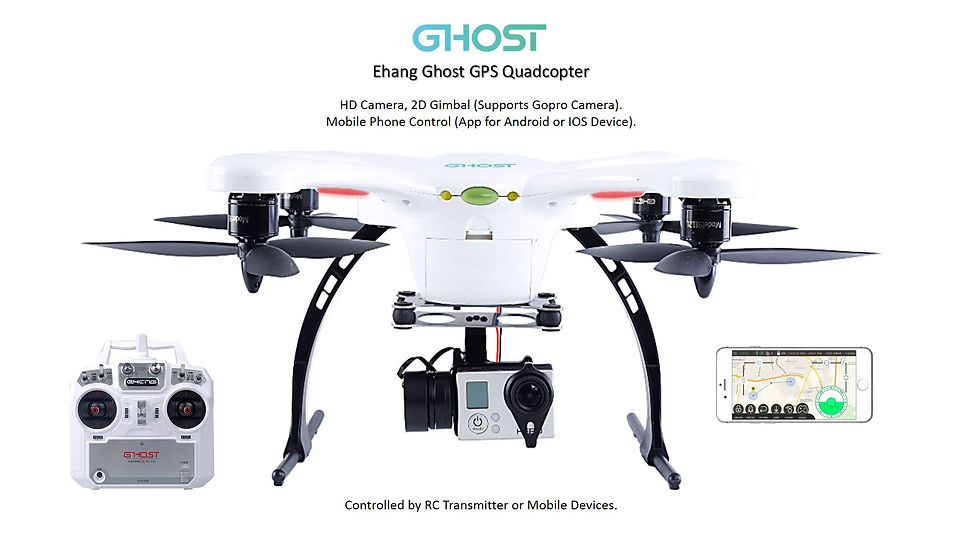

Ehang Ghost GPS Quadcopter, HD Camera, 2D Gimbal (Supports Gopro Camera), Mobile Phone Control (App for Android or IOS Device), Controlled by RC Transmitter or Mobile Devices, Deep  and  Vivid  Colors, Available Models: 1 - EHang Ghost Basic, 2 - Ghost Aerial with 2D gimbal and 3 - Ghost Aerial Plus with HD camera.

Ehang Ghost, Ehang Ghost Drone, Ehang Ghost Quadcopter, QuadsForFun, View from above, View underneath

Ehang Ghost: View from above (with Blade’s Protectors), Ehang Ghost View from above (without Blade’s Protectors), View Underneath (Belly)

Ehang Ghost 2D Gimbal, Ehang Ghost 2D Gimbal PTZ, QuadsForFun

Ehang Ghost 2D Gimbal: 2D Gimbal - Lateral View, 2D Gimbal - Front View, 2D Gimbal - Front View + HD Camera.

SPECIFICATIONS (Ehang Ghost):

  • Transmitter: PCM or 2.4GHz (at least Six Channels).

  • Battery: 5400mah Li-po battery.

  • Flight Precision: ± 0.5meters.

  • Maximum angle of rotation: 360°.

  • Drone Speed: 6 - 15meters/second

  • Control distance: 1000 meters (With G-Box Bluetooth).

  • G-Box: 433mHz, 80mw, standard Bluetooth communication device.



  • Flight time:

Without guard rings and camera: about 26 minutes.

With guard rings and without camera: about 14 minutes.

Without guard rings and with camera: about 20 minutes.



  • Drone Weight: With guard rings - 790 grams.

  • 5400 mAh Battery: 320 grams.

  • 2700mAh Battery: 180 grams.

  • Gimbal: 225grams.



  • 3-blade propeller: 10 grams per piece.

  • Guard ring: 40 grams per piece.

  • HD Camera: 60 grams.

  • Landing gear: 31 grams per piece.

  • Diagonal Distance: 36.0 cm.

  • Motor: EHang EH9812 and EH9812R (reversible Motor).

  • Drone Height: 10.0 cm.

  • Height with Landing Gears: 19.0 cm.

  • Battery: XT60 connector, 3-cells, 11.1 Volts, 5400 mAh, Li-po.

  • GPS: UBlox 6M parallele compacted compass.

  • Wind Resistance: < 10.7 meters /second.

  • Night mode has LED lights to track drone in the sky.

  • The Pilot can integrate with a third-party recording monitor to preview the photos and videos as the drone is flying.

  • The G-BOX is a wireless interface unit designed specifically for controlling and interfacing with the GHOST Drone. The GHOST App cannot operate the Ghost without a G-BOX.

  • Independently Flight Control System with ultra-fast processing capacity enable quick response at millisecond level.

Ehang Ghost: AUTO-RETURN, DATA SYNC, POINT-TO-POINT FLYING, TILT MODE, ONE-CLICK HOVER COMMAND, MICRO CONTROL MODE, MICRO CONTROL MODE, AUTO FOLOW MODE, HD AERIAL FILMING

AUTO-RETURN, DATA SYNC, POINT-TO-POINT FLYING, TILT MODE, ONE-CLICK HOVER COMMAND, MICRO CONTROL MODE, MICRO CONTROL MODE, AUTO FOLOW MODE, HD AERIAL FILMING.

Ehang Ghost App Controller: AUTO-RETURN, DATA SYNC, POINT-TO-POINT FLYING, TILT MODE, ONE-CLICK HOVER COMMAND, MICRO CONTROL MODE, MICRO CONTROL MODE, AUTO FOLOW MODE, HD AERIAL FILMING

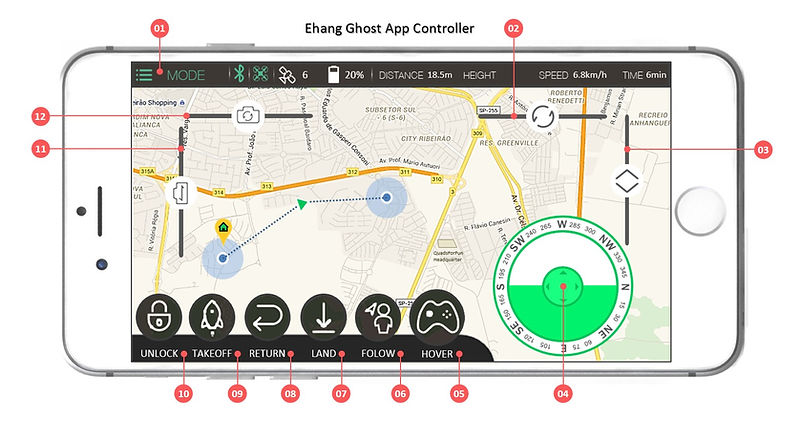

Ehang Ghost App Controller:

01 – STATUS BAR: Settings, Flight mode, Bluetooth, Heartbeat, Number of Satellites, Battery Level, Flight Distance, Altitude, Speed, Flight Time.

02 – ROTATE: Yaw control.

03 – ELEVATION: Adjust altitude.

04 – MICRO-CONTROL: Functions similarly to a remote control joystick.

05 – HOVER: Stay in the current position.



Ehang GhostG-Box, Ehang Ghost Bluetooth, EHang Ghost App, Quadsforfun

Communication Way

06 – FOLOW: Auto-follow.

07 – LAND: Descend and land.

08 – RETURN: Returns and hovers at 10m (33 ft) above the takeoff point.

09 – TAKEOFF: Take off and hover at 10m (33 ft).

10 – LOCK: Stop propellers / UNLOCK: Start propellers.

11 – GIMBAL: Control gimbal pitch.

12 – GIMBAL: Control gimbal roll.

Ehang Ghost Tansmitter: ANTENNA, GIMBAL UP-DOWN (TILT), ON-OFF, GPS: Hover, Sim-Hover, Return MANUAL: Float, Sim-Float, Land, THROTTLE-ELEVATOR TRIM, AILERON, ELEVATOR-THROTTLE, AILERON-TRIM, POWER+ SWITCH, POWER LED, BINDING KEY, RUDDER TRIM

EHang Ghost Transmitter:

01) ANTENNA

02) GIMBAL UP-DOWN (TILT)

03) ON / OFF

04) GPS: Hover, Sim-Hover, Return

MANUAL: Float, Sim-Float, Land

05) THROTTLE / ELEVATOR TRIM

06) AILERON

07) ELEVATOR / THROTTLE

08) AILERON TRIM

09) POWER LED

10) POWER SWITCH

11) BINDING KEY

12) RUDDER TRIM

13) THROTTLE / ELEVATOR

14) THROTTLE / ELEVATOR TRIM

15) GPS / MANUAL

16) LOCK / UNLOCK

GPS UBlox 6M compacted compass, Flight Controll Board (Ehang Ghost), G-Box: 433mHz, 80mw, Standard Bluetooth, 3S Battery, 11.1 volts, 5400 mAh, Li-po, ESC - Electronic Speed Controller (Ehang Ghost)
Original Ehang Ghost 3-Leaf CW/CCW Propeller, Propeller Guards, Motor and Propeller Assembled, Original Motor: EHang EH9812, Ehang EH9812R (Reversible Motor), Battery Charger (Ehang Ghost)

Enlarge Pictures to see details about EHang Ghost: Original Ehang Ghost 3-Leaf CW/CCW Propeller, Propeller Guards, Motor and Propeller Assembled, Original Motor: EHang EH9812, Ehang EH9812R  (Reversible Motor), Battery Charger (Ehang Ghost), GPS UBlox 6M compacted compass, Flight Controll Board (Ehang Ghost), G-Box: 433mHz, 80mw, Standard Bluetooth, 3S Battery, 11.1 volts, 5400 mAh, Li-po, ESC - Electronic Speed Controller (Ehang Ghost).
